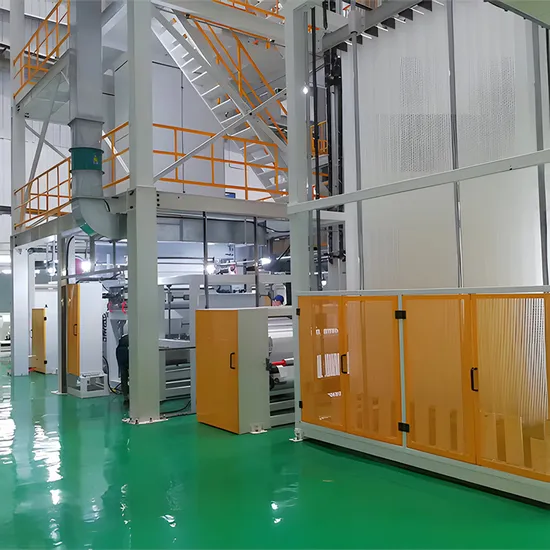

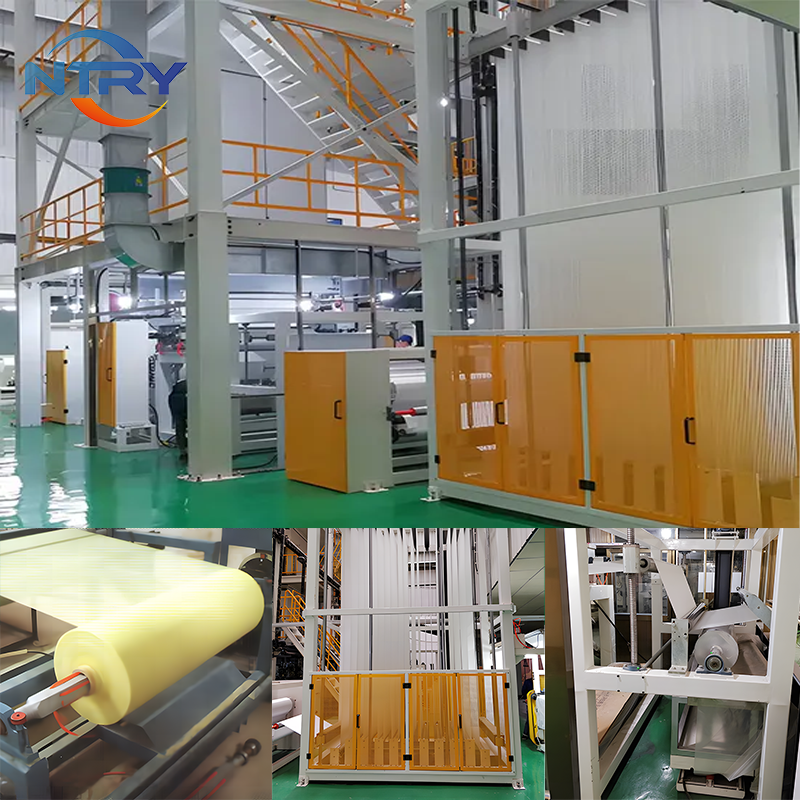

NTRY1800-VERTICAL PRE-PREG IMPREGNATION LINE
1. NTRY1800-VERTICAL PRE-PREG IMPREGNATION LINE, is used for glass fiber epoxy resin impregnation, dryer and stacking, mainly used for CCL, insulant panel and other related item production.
2. 80~150gsm/cm2 900~1535mm glass fiber, glass fiber felt, kraft paper, cotton fiber
3. Surrounding
4. Supply Scope

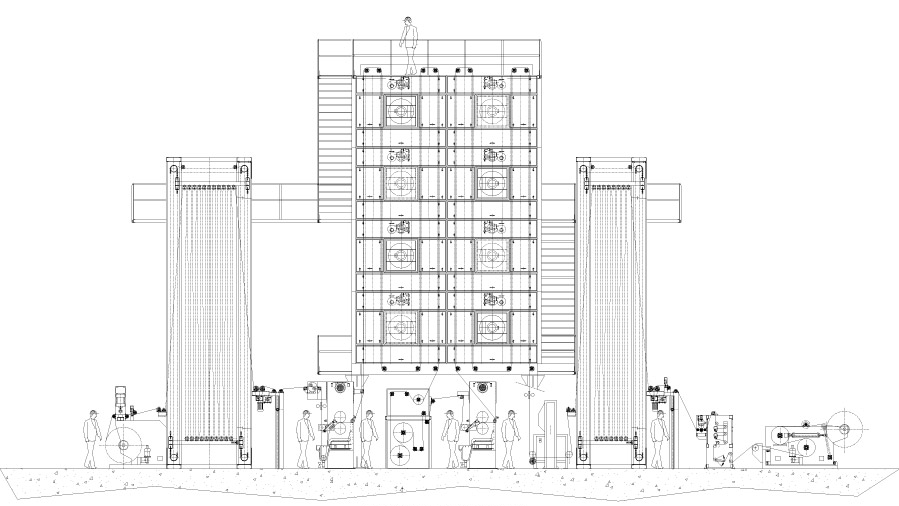

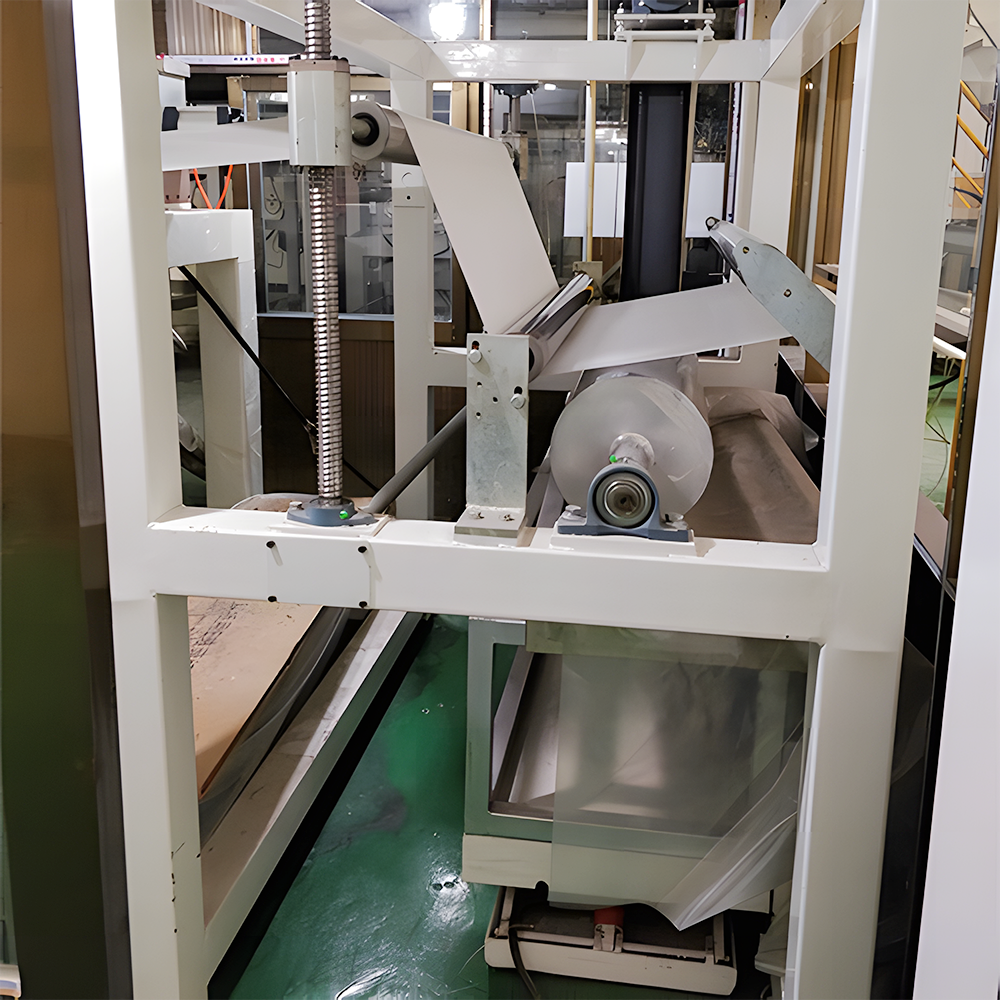

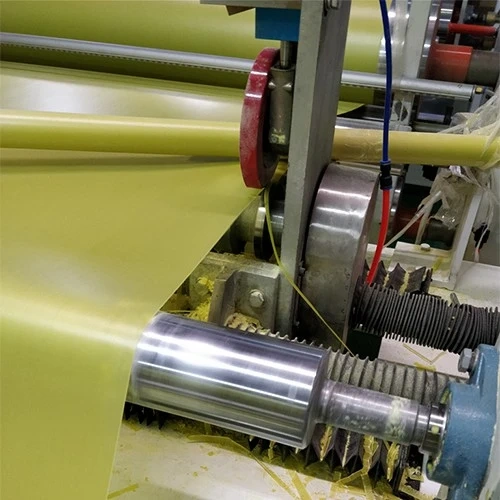

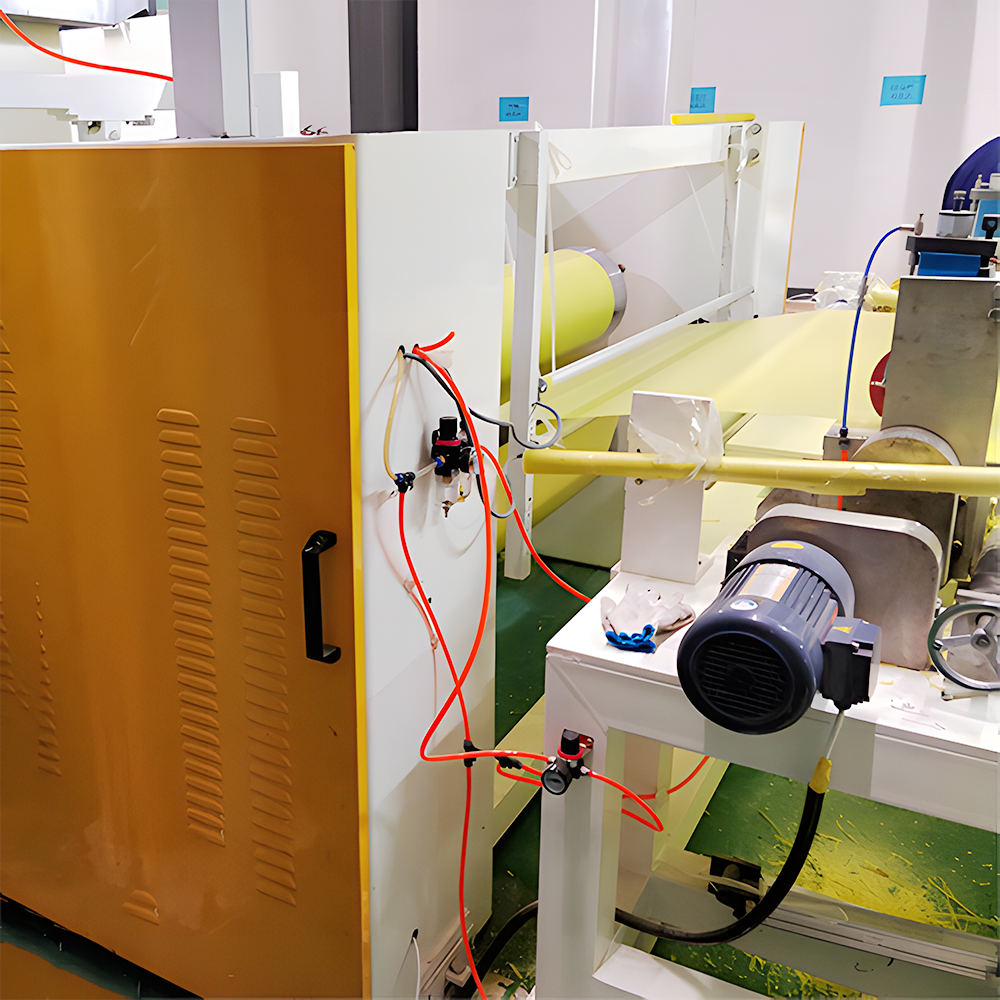

Shaft-less web un-winder--Electrical web ironing piece-up--Floating Web Storage--Front Tractor Device--Web Impregnation--Heating Chamber (2up+2down)

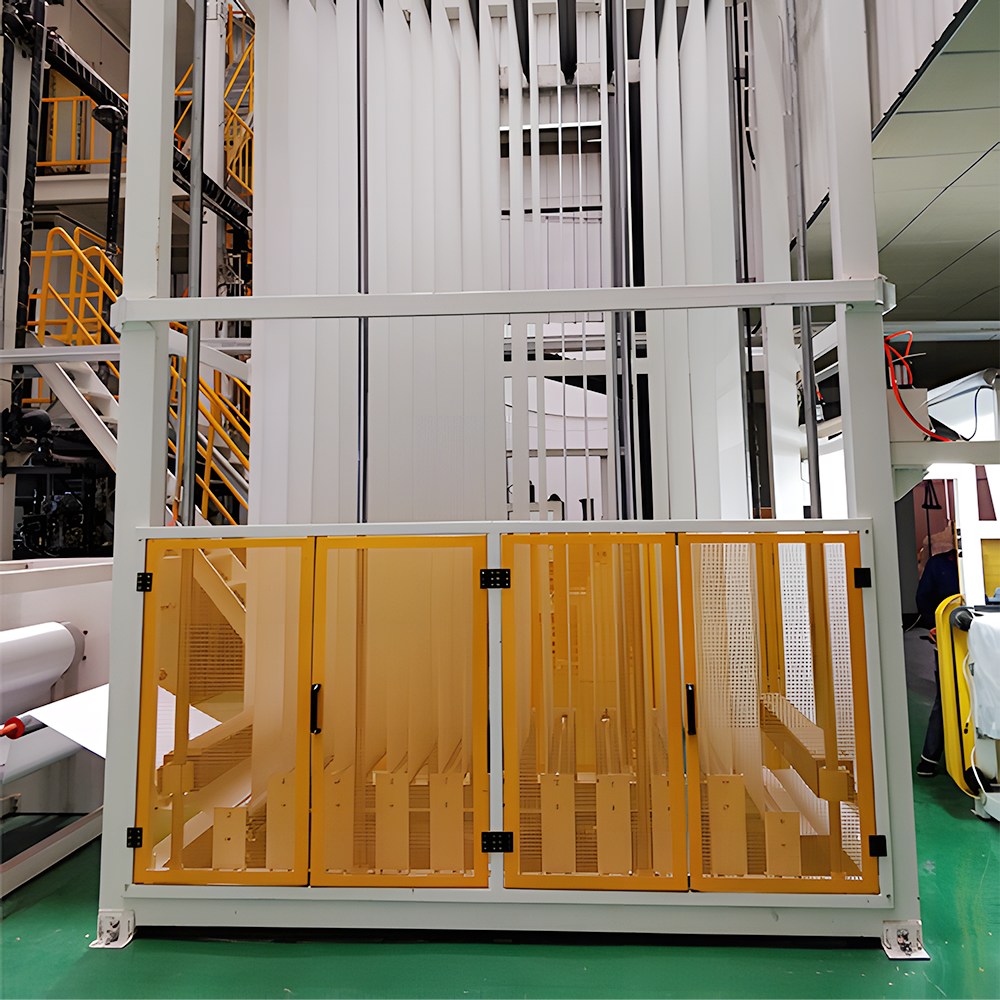

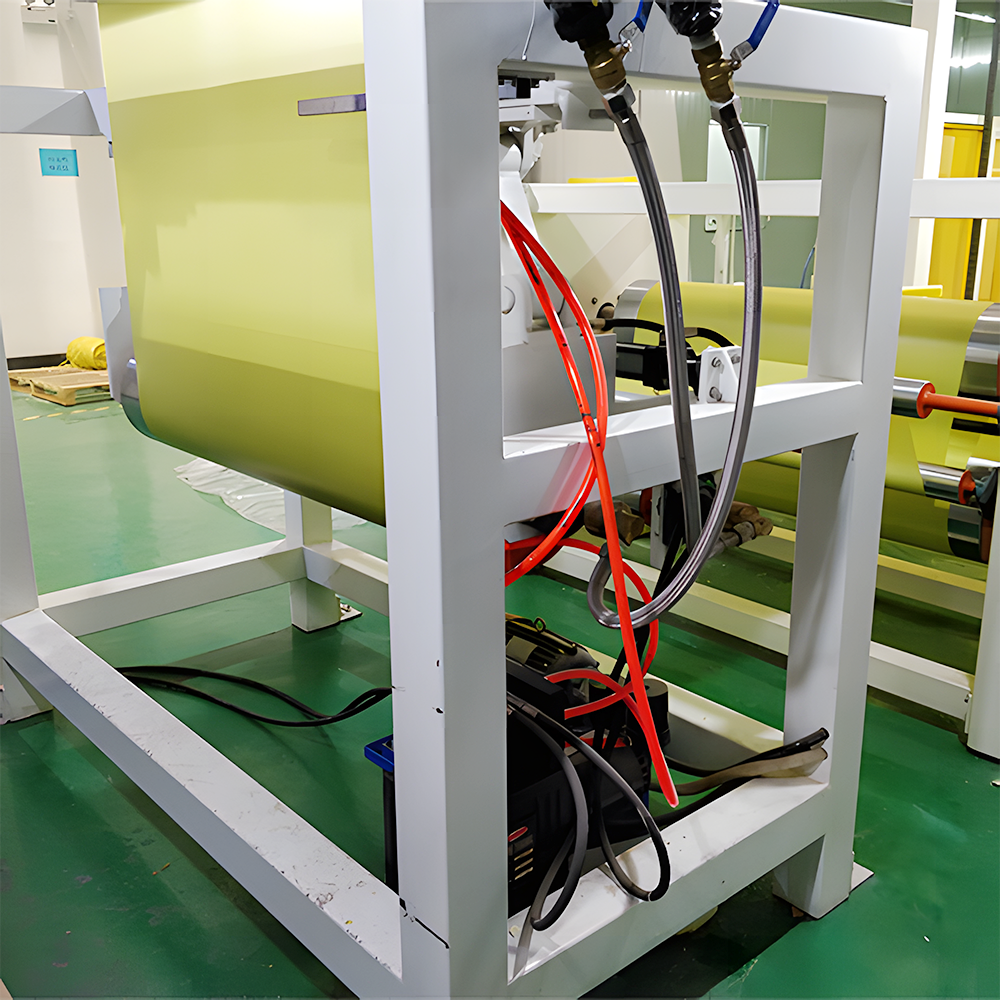

--Cooling Chamber (water cooling & air cooling)--Operating Platform--web-aligner with Cooling--Rear Traction Device--traction trimmer--Floating finishing Storage-
-Arm-radial re-winder (duplex)--Finishing Cutter--Conveyor--Hydraulic Stacker--Surrounding Protection Chamber Exhausting Waste Gas RTO incinerator.
Basic specification for NTRY-1800-L Prepreg impregnation line
| Model | NTRY-1800-L (2) VI |
| Raw Web | Glass fiber, glass felt, Kraft paper |
| Thickness of Web | 1080, 2116, 7628 & glass felt |
| Width of Web | 900~1535mm |
| Glue | Soluble Glue Soluble Epoxy Glue |
| Solid Resin Content of Pre-Preg | 40~65% |
| Solid Content of Glue | 56~70% |
| Solvent | Acetone DMF mixed solvent |
| T/W | ±5g |
| G/T | ±8s |
| Operating width | 1800mm (coating rollers) |
| Mechanical Speed | 0~20m/min |
| Operating Speed | 5~16m/min |
| Heating Method | Thermal oil heating reflection and hot air auxiliary |
| Tension Control | ±5 |
| Temperate Control | ±5 |
| Heating Chamber Temperature | 1200~2500C |
| Max. Diameter of Web Roll | Ø 800mm |
| Max. Loading Weight | 1000kg |
| Diameter of expanding roller | Ø 76mm |
| Length of Chamber unit | 3000mm |
| Web drying trip | 18000mm |
| Chamber Drying Width | 1600mm |
| Length | 26000mm |
| Width | 8000mm |
| Height | 17500mm |
| Operating Side | Left of web movement |
| Driven side | Right of web movement |
