Epoxy Resin Impregnation Line for CCL Prepreg – Horizontal Type
NTRY’s epoxy resin impregnation line is designed for the continuous production of high-quality prepreg used in copper clad laminates (CCL). This horizontal system is ideal for fiberglass cloths such as 7628 and 2116, ensuring precise resin pick-up and consistent coating across the full working width up to 1350mm.
Using mixed epoxy resin systems (acetone, butanone, DMF), the line supports adjustable resin content from 40–65% and maintains excellent dip uniformity at ±0.5%. With fully automatic electric-actuated temperature zones and hot air circulation ovens (100–230℃), the line ensures stable drying and consistent resin curing.
Operating speed ranges from 3–15m/min, with mechanical speed up to 18m/min, making it suitable for both pilot runs and high-volume production. Trusted by CCL and multilayer PCB manufacturers worldwide, this line offers superior control, high yield, and stable performance for modern prepreg manufacturing.

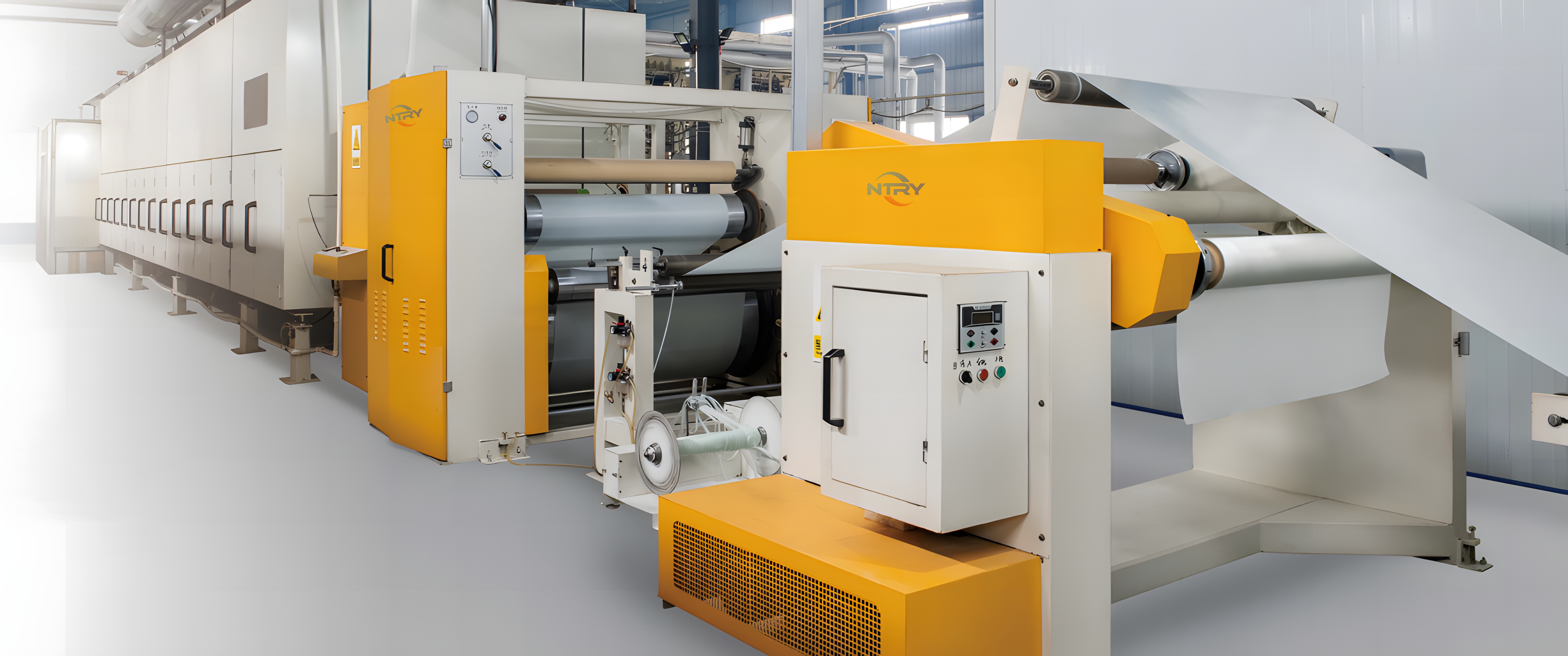

NTRY’s epoxy resin impregnation line is built for the continuous production of prepreg used in copper-clad laminate (CCL).
Optimized for glass fabrics such as 7628, 2116, and others, the line ensures precise resin control, uniform coating, and consistent curing performance — all critical for downstream PCB quality.

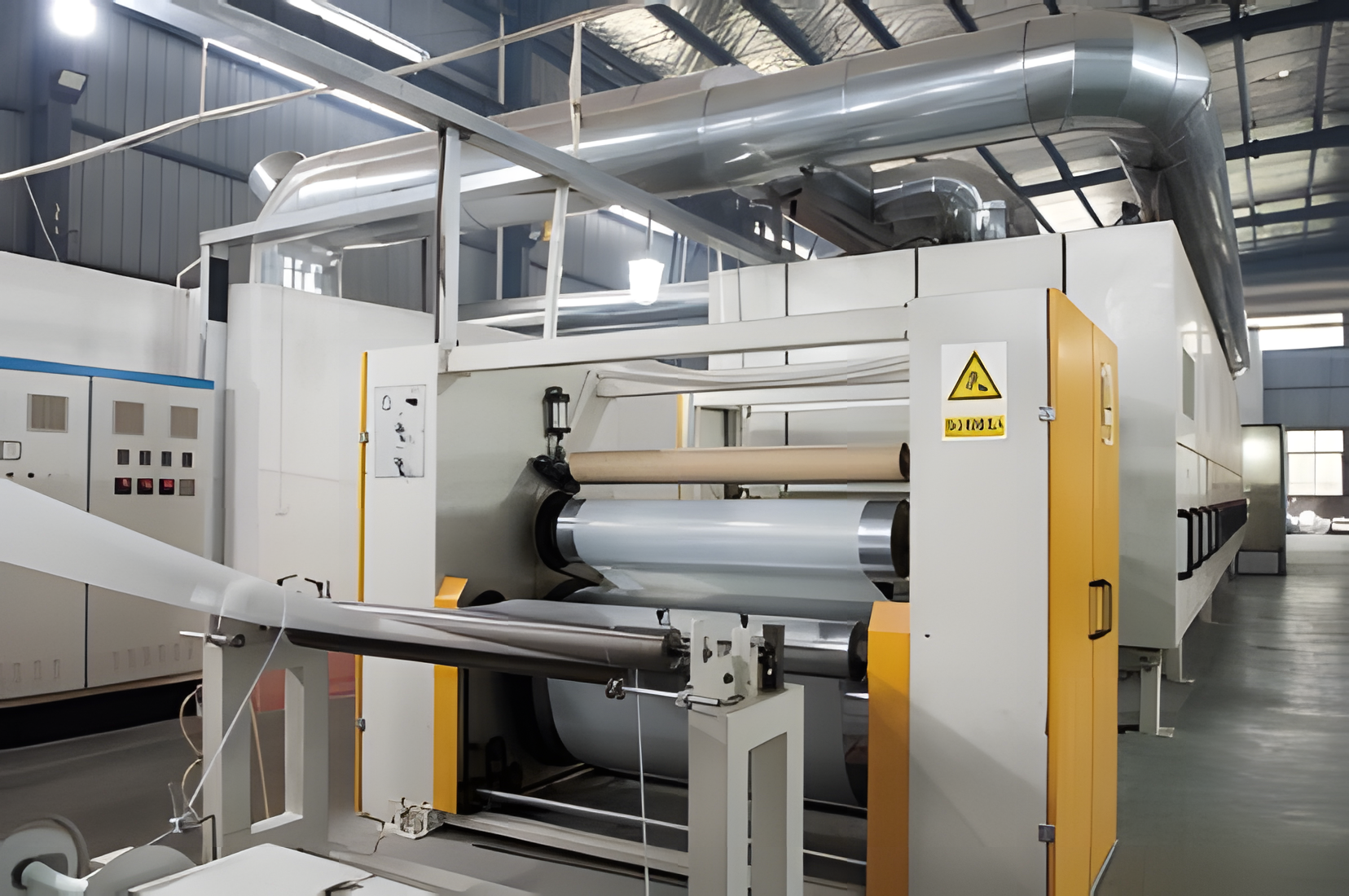

✔️ Stable Resin Content Control
Advanced metering and squeeze roll systems ensure uniform pickup across full width.

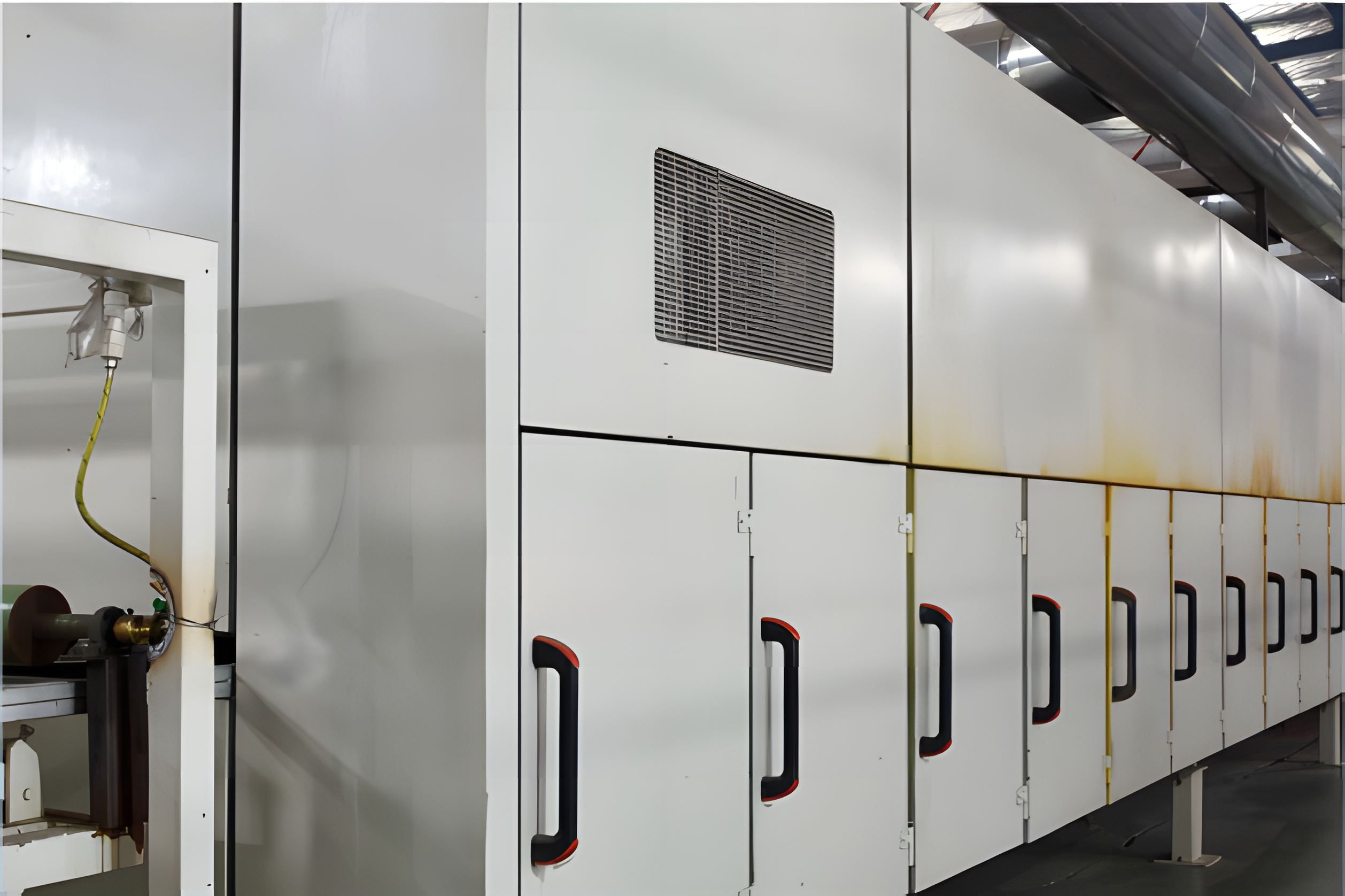

✔️ Multi-Zone Drying Oven
Individually controlled heating zones (up to 6–8) using hot air circulation and PID control logic.
✔️ Closed-loop Tension Control
Maintains web flatness and tension accuracy, essential for multilayer PCB consistency.
✔️ High-Speed Operation
Production speed up to 30–60 m/min depending on resin and fabric type.
✔️ Custom Width Configurations
Standard line widths: 1270mm / 1320mm / 1550mm (other widths customizable).
| Parameter | Value |
|---|---|
| Fabric Compatibility | 7628, 2116, 1080, 3313, etc. |
| Resin Type | Epoxy, Modified Epoxy |
| Working Width | 1270mm / 1320mm / Custom |
| Line Speed | 20–60 m/min |
| Oven Zones | 6–8 Zones, PID Controlled |
| Tension Control | Automatic Closed-Loop |

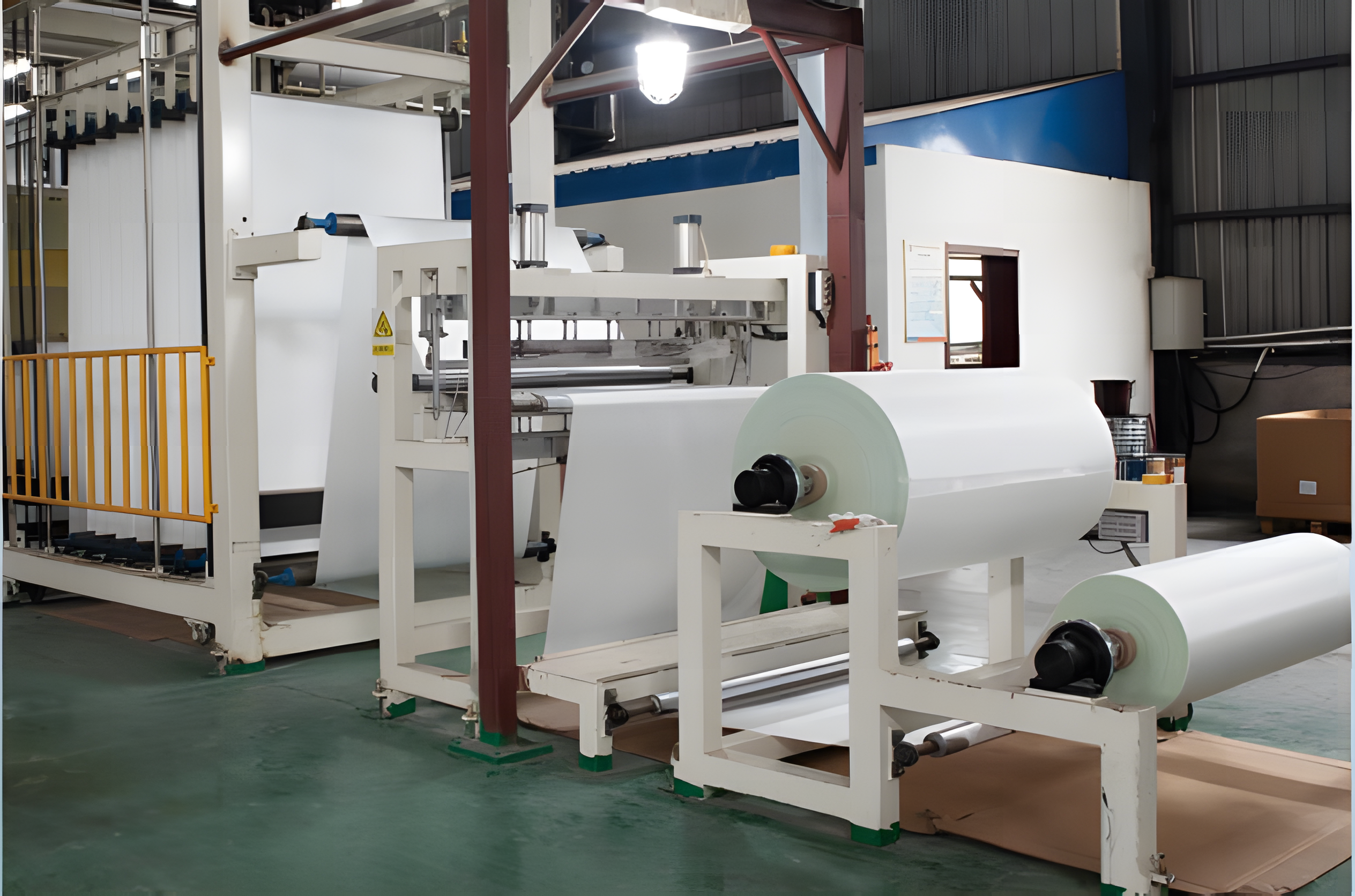

| Unwinder/Rewinder | Shaftless or Air-Shaft Optional |
Copper-Clad Laminate (CCL)
Prepreg Sheets
Multilayer PCB Base Materials
5G Communication Boards
Automotive Electronics
✅ Over 15 years in resin impregnation machinery
✅ Exported to Southeast Asia, Middle East, Eastern Europe
✅ Full commissioning, remote diagnostics, and 24/7 support
✅ Custom engineering team for new resin systems (FR-4, halogen-free, etc.)
